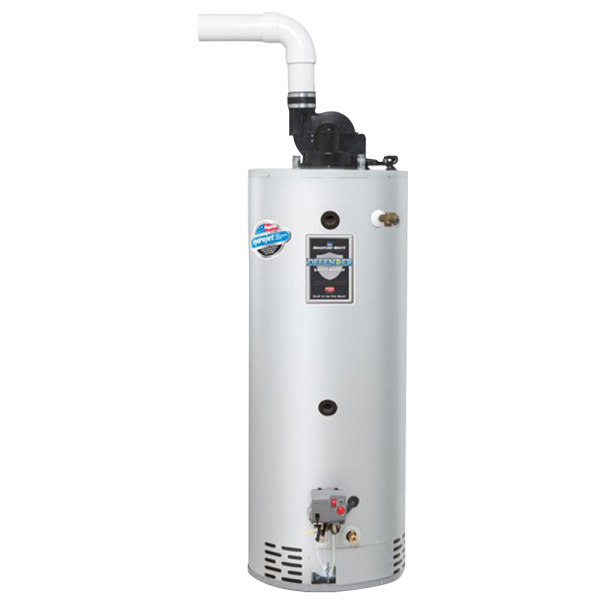

Power Vented Water Heater Installed



  • Bradford White or equivalent product
  • Hydrojet Total Performance System
  • Side Connections – ¾” (19mm) NPT
  • Non-CFC Foam Insulation
  • White Rodgers Electronic Control
  • 4″ “Snap Lock” Draft Diverter
  • Low Restrictive Brass Drain Valve


  • ICON System – Intelligent gas control with spark to pilot ignition system eliminates the constant burning pilot. This results in savings of pilot gas during standby periods (120 V.A.C.).
  • Enhanced Performance – Proprietary algorithms provide enhanced First Hour Delivery ratings and tighter temperature differentials.
  • Advanced Temperature Control System – Microprocessor constantly monitors and controls burner operation to maintain consistent and accurate water temperature levels.
  • Intelligent Diagnostics – An exclusive green LED light prompts the installer during start-up and provides ten different diagnostic codes to assist in troubleshooting.
  • Power Vented Water Heater – Designed for installations where atmospheric units cannot be used. Exhaust gases are vented under positive pressure directly out of the building through the roof or the wall.
  • Powerful Blower Motor – Our significantly quiet design has greater resistance to outside winds and the power to vent in many difficult venting situations.
  • Horizontal and Vertical Venting – PVC, ABS or CPVC (Maximum equivalent vent length on reverse side).
  • Advanced Screen Lok Technology Flame Arrestor Design – Flame arrestor is designed to prevent ignition of flammable vapor outside of the water heater (excluding RG1PV55H6N & RG2PV75H6N).
  • Flammable Vapor Sensor – Electronic sensor prevents burner operation if flammable vapors are detected. The sensor will also prevent operation if there is ongoing flammable vapor burn inside the combustion chamber
  • Maintenance-Free – No regular cleaning of air inlet openings or flame arrestor is required under normal conditions
  • Sight Window – Offers a view into the combustion chamber to observe the operation of the pilot and burner.
  • factory-Installed Hydrojet Total Performance System – Cold water inlet sediment reducing device helps prevent sediment build-up in tank. This increases first hour delivery, while minimizing temperature build-up at top of tank.
  • Vitraglas Lining – Bradford White tanks are lined with an exclusively engineered enamel formula that provides superior tank protection from the highly corrosive effects of hot water. This formula (Vitraglas) is fused to the steel surface by firing at a temperature of over 1600°F (871ºC).
  • Non-CFC Foam Insulation – Covers the sides and top, reducing the amount of heat loss. This results in less energy consumption, improved operation efficiencies, and jacket rigidity.
  • Water Connections – 3/4″ NPT factory-installed true dielectric fittings.
  • Factory-Installed Heat Traps – Design incorporates a flexible disk that reduces heat loss in piping and eliminates the potential for noise generation.
  • Protective Magnesium Rod.
  • T&P Relief Valve – Installed.
  • Low Restriction Brass Drain Valve – Durable tamper-proof design

5 Years Parts Limited Warranty


Intended Household2-3 Person
Fuel TypeNatural Gas
Capacity (Gallons)40, 50
1st Hour Delivery (Gallons)86
BTU Input40000, 50,000
Vent Size2″, 3″
Gas Connection1/2″
Water Connection3/ 4″
Recovery Efficiency80%
Height (Inches)58.25″
Diameter (Inches)22″
Depth (Inches)25-1/4”, 27-1/4″
Weight (lbs)189 lbs, 210 lbs
Energy Factor0.65

Product Literature

Click to Download:


Installation Information

Subject to inspection*

All Orders Subject to Confirmation by Metropolitan:

Upon receipt of your order or booking inquiry, a member of our service team will contact you to arrange a (virtual) site inspection, and provide an order confirmation, and provide you options for installation. All orders are subject to confirmation or cancellation by Metropolitan Heating & Air Conditioning Ltd. Financing Orders subject to Approved Credit.


  • Run including 10 feet vent,
  • electrical outlet,
  • Gas piping pluming transition
  • Removal and disposal of existing


  • Working shut off volves
